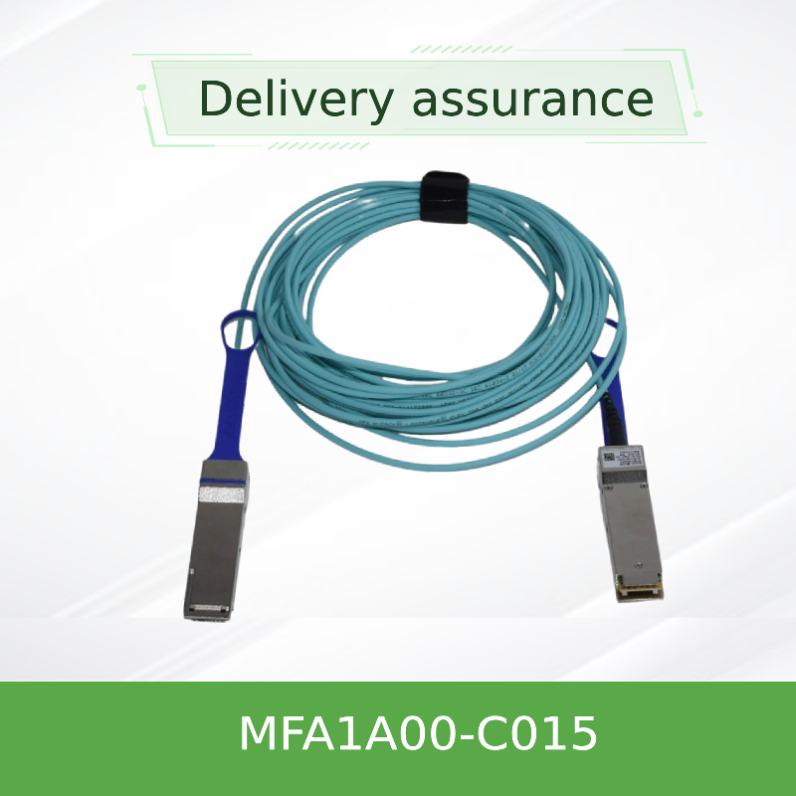

NVIDIA MFA1A00-C015 100Gb/s QSFP28 Active Optical Cable 15m for 100GbE network

The MFA1A00-C015 represents NVIDIA's advanced 100Gb/s Ethernet active optical cable, delivering exceptional bandwidth and reliability for modern data center environments. This premium network card solution outperforms traditional copper alternatives with superior signal integrity over 15-meter distances.

• 100Gb/s Ethernet data transmission
• 15-meter optimized reach with multi-mode fiber
• Hot-pluggable QSFP28 form factor
• Low 2.2W typical power consumption
• Comprehensive digital diagnostics monitoring
• RoHS compliant and environmentally friendly

The NVIDIA MFA1A00-C015 is a high-speed active optical cable engineered for 100Gb/s Ethernet applications requiring 15-meter connectivity. This advanced network card alternative features a QSFP28 form factor with integrated VCSEL-based transceivers, providing robust connectivity for high-density data center infrastructures. The MFA1A00 series, including the MFA1A00-C015 variant, represents cutting-edge network interface technology for modern enterprise environments.

• Maximum Data Rate: 100 Gb/s bidirectional
• Cable Length: 15 meters
• Interface: QSFP28 compliant with SFF-8665
• Power Supply: Single 3.3V with 2.2W typical consumption
• Fiber Type: Multi-mode (MMF) with aqua-colored jacket
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes, for easy installation and maintenance
• Minimum Bend Radius: 30mm

This sophisticated network card solution utilizes Vertical Cavity Surface-Emitting Laser (VCSEL) technology with four parallel multi-mode fibers, each operating at data rates up to 26Gb/s. The cable incorporates selectable retiming capabilities and programmable input equalizers with output pre-emphasis for optimal signal integrity. The MFA1A00-C015 network interface controller adheres to SFF-8636 management interface standards, providing comprehensive monitoring capabilities.

The active optical cable converts electrical signals to optical signals at each endpoint using integrated transceivers. Electrical data enters through the QSFP28 connector, undergoes advanced signal conditioning with programmable equalization, then converts to optical signals via VCSEL arrays. These optical signals transmit through multi-mode fibers to the receiving end, where they're converted back to electrical signals with programmable output amplitude control, ensuring reliable data transmission across the 15-meter span.

• Data center top-of-rack to aggregation switch connections
• High-performance computing cluster interconnects
• Cloud infrastructure and hyperconverged systems
• Storage area network and NAS connections
• Enterprise network backbone and distribution layer
• Financial services and trading infrastructure

We stand behind our products with comprehensive service offerings:

• Warranty Protection: Standard manufacturer warranty with optional extensions available
• Technical Support: 24/7 customer consultation and technical assistance from certified engineers
• Rapid Delivery: Efficient logistics network with global shipping capabilities
• Extensive Inventory: Over 10 million products available for immediate shipment
• Regulatory Compliance: Complete certification documentation including CE, FCC, and RoHS

What applications is the MFA1A00-C015 best suited for?
The MFA1A00-C015 is ideal for 15-meter connections in data centers, making this network card solution perfect for top-of-rack to aggregation switch links, storage connectivity, and high-performance computing applications.

Does the MFA1A00-C015 require special configuration?
No special configuration is needed for basic operation. The cable functions as a plug-and-play network interface controller, though advanced features like input equalization can be programmed for optimal performance.

What is the typical power consumption of this cable?
Typical power consumption is 2.2W per end with retiming enabled, making this network card alternative highly energy-efficient compared to other high-speed connectivity solutions.

Is the MFA1A00-C015 compatible with existing QSFP28 ports?
Yes, this network interface card alternative is fully compliant with SFF-8665 QSFP28 standards and compatible with most major switch and adapter platforms supporting 100GbE connectivity.

• Maintain minimum bend radius of 30mm during installation to prevent fiber damage and signal degradation
• Verify host system compatibility and QSFP28 port capabilities before deployment
• Operate within specified temperature range of 0°C to 70°C for optimal performance
• Utilize digital diagnostic monitoring capabilities for performance optimization and troubleshooting
• Follow electrostatic discharge (ESD) precautions during handling to prevent component damage
• This equipment complies with FCC Class A limits designed for commercial environments
